- DESCRIPTION
- SPECIFICATIONS
- FREQUENTLY ASKED QUESTIONS
Main Advantages of InwallTech Speaker Selectors are:
Removable Speaker Connectors (No Extra Cost) –Easier Install and firmer connections
Heat Sink Covered Resistors (No Extra Cost)….other makers provide inadequate cooling –Higher (honest) Power Handling
Venting ABOVE and BELOW Resistors (No Extra Cost) — Smarter design = Higher power handling and longer life
The SS6R is a resistor based, automatic impedanced matching speaker selector used for connecting 6 pairs of speakers while maintaining a safe impedance load for your receiver. Each pair of speakers can be turned on or off independently in any combination without concern for amplifier loading.
-Connect and safely control multiple speaker pairs.
-Automatic impedance matching protection circuitry engages without the need for user involvement.
-Individual room on/off pushbuttons
-Heavy-duty screw-type connectors are removable and accept up to 14 gauge wire
-Isolated left/right circuit grounds provide safe connections for amplifiers with floating grounds or bridged configurations
-High quality construction throughout provides excellent reliability,
accurate noise-free switching and years of trouble free operation
-Rubber feet prevent scratching and keep selector in place during operation
Impedance Matching
Power Handling: 100 watts RMS per channel
Frequency Response: 20 Hz – 22,000 Hz (+0dB, -0dB)
Wire Size Acceptance: Up to 14 gauge wire
Dimensions: 1 7/8″ x 11 1/2″ x 7″
Maximum number of speaker connections:
6 pairs (4 ohm minimum)
Minimum Amplifier Impedance w/All Speakers Selected:
All 8 ohm speakers connected and engaged: 5.3 ohms
All 4 ohm speakers connected and engaged: 4.6 ohms
DESCRIPTION
SPECIFICATIONS
FREQUENTLY ASKED QUESTIONS
DESCRIPTION
Main Advantages of InwallTech Speaker Selectors are:
Removable Speaker Connectors (No Extra Cost) –Easier Install and firmer connections
Heat Sink Covered Resistors (No Extra Cost)….other makers provide inadequate cooling –Higher (honest) Power Handling
Venting ABOVE and BELOW Resistors (No Extra Cost) — Smarter design = Higher power handling and longer life
The SS6R is a resistor based, automatic impedanced matching speaker selector used for connecting 6 pairs of speakers while maintaining a safe impedance load for your receiver. Each pair of speakers can be turned on or off independently in any combination without concern for amplifier loading.
-Connect and safely control multiple speaker pairs.
-Automatic impedance matching protection circuitry engages without the need for user involvement.
-Individual room on/off pushbuttons
-Heavy-duty screw-type connectors are removable and accept up to 14 gauge wire
-Isolated left/right circuit grounds provide safe connections for amplifiers with floating grounds or bridged configurations
-High quality construction throughout provides excellent reliability,
accurate noise-free switching and years of trouble free operation
-Rubber feet prevent scratching and keep selector in place during operation
SPECIFICATIONS
Impedance Matching
Power Handling: 100 watts RMS per channel
Frequency Response: 20 Hz – 22,000 Hz (+0dB, -0dB)
Wire Size Acceptance: Up to 14 gauge wire
Dimensions: 1 7/8″ x 11 1/2″ x 7″
Maximum number of speaker connections:
6 pairs (4 ohm minimum)
Minimum Amplifier Impedance w/All Speakers Selected:
All 8 ohm speakers connected and engaged: 5.3 ohms
All 4 ohm speakers connected and engaged: 4.6 ohms
FREQUENTLY ASKED QUESTIONS
Q & A
There are no questions yet
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
Related products
-

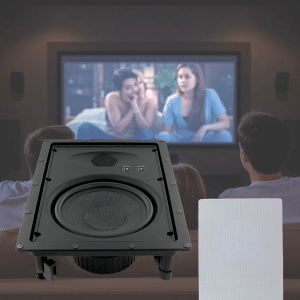

InwallTech® Atmos Ready –The Forest Park 712
